Description
Heat exchangers are almost the most used members in chemical processes and can be seen in most industrial units. They are devices that allow the transfer of heat energy between two or more fluids at different temperatures. This operation can be done between liquid-liquid, gas-gas or gas-liquid. Heat exchangers are used to cool the hot fluid or to heat the fluid with a lower temperature or both. In this project, we will design the tube shell heat exchanger.
Heat exchangers are used in a wide range of applications. These applications include power plants, refineries, petrochemical industries, manufacturing and production industries, process industries, food and pharmaceutical industries, metal smelting industries, heating, air conditioning, refrigeration systems and space applications. Heat exchangers in various devices such as boilers, steam generators, condensers, evaporators, evaporators, cooling towers, fan coil preheaters, oil coolers and heaters, radiators, furnaces, etc., are widely used. have
Design of tube shell heat exchanger

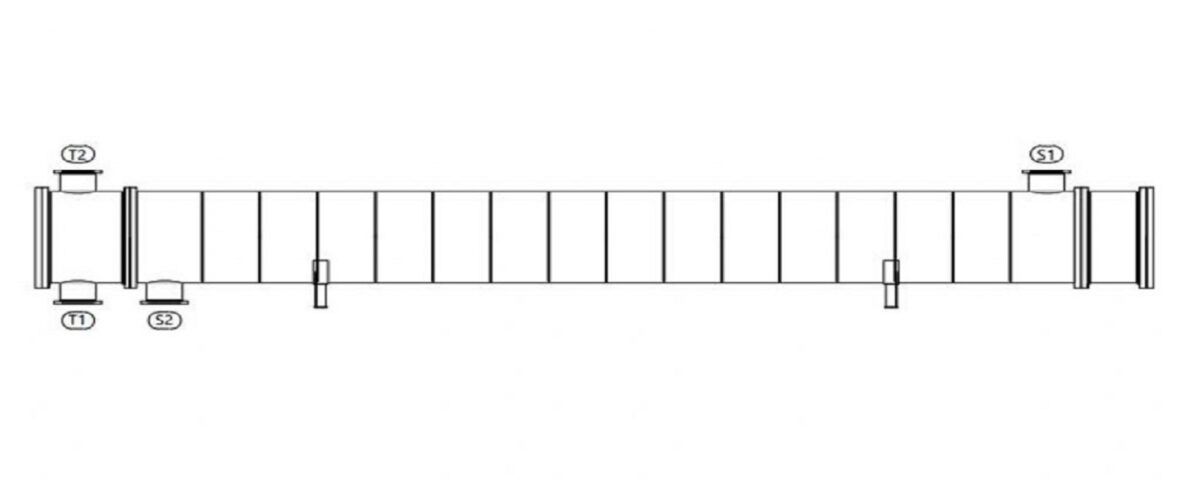

In this project, an industrial shell-and-tube heat exchanger is designed in Aspen EDR software. The figure below shows the arrangement of pipes.
To buy the project or get more information about it, proceed through the link below.
